LED Light Sensor and Light Sensor Controller
We offer LED light sensor and LED light sensor controller.
Easily applicable for: permanently installed LED Screens as well as moving LED Screens in road traffic, optimized light curve for use in road traffic in coordination with the KBA, logging of measured and played light values for LED Screens.
The Screen Experts Screen light sensor can be used with Novastar products. www.novastar.tech
New:
- also usable for Brompton
- Web interface for setting and logging
- Up to 4 light sensors for high reliability
- Light sensors can be integrated with only one cable via POE

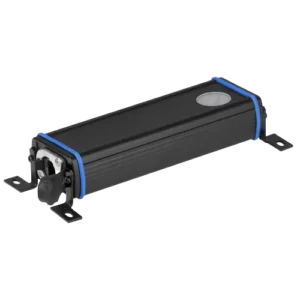

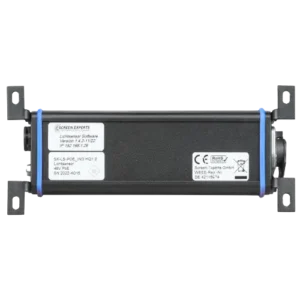

Screen Experts SX-LS-POE_IND HQ1-0
- Data transmission and power supply via POE
- Brightness measurement from 0 - 64000 lux (in 1 lux steps)
- Waterproof for outdoor installation
- integrated RJ45 jack: Neutrik etherCON NE8FDP-TOP
- Password-protected admin area for setting a fixed IP address
- Adjustable offset for the measured lux value

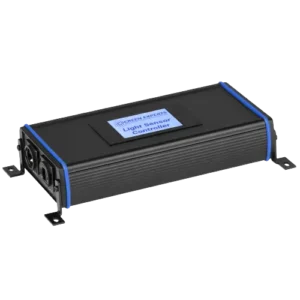

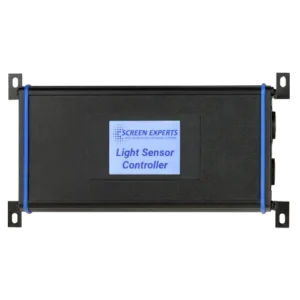

Screen Experts SX-LSC-XS HQ1-0
- Road mode - designed for use on the road
- Touchscreen for easy operation
- Manages up to 4 light sensors via LAN
- Recording of brightness values and important events on SD card
- Password protected administration area
- Setting the IP address of the light sensor controller
- Status display - measured LUX value, output % value to the LED controller, connection to the LED controller and to the network.
Download datasheet
